AMP20M1HD-A



List Price: $75.00
Best Sale Price can be: $67.00
Savings: $8
Quantity Available to Ship Now: 30

Availability:Usually Ships in 24 Hours
Product Code: AMP20M1HD-A

Product Details
AMP20 Lithium Ion Prismatic Pouch Cell
Data Sheet AMP20M1HD-A
White Paper Nanophosphate Lithium Ion Battery Chemistry
Design Guide A123 Aluminum Pouch Cell

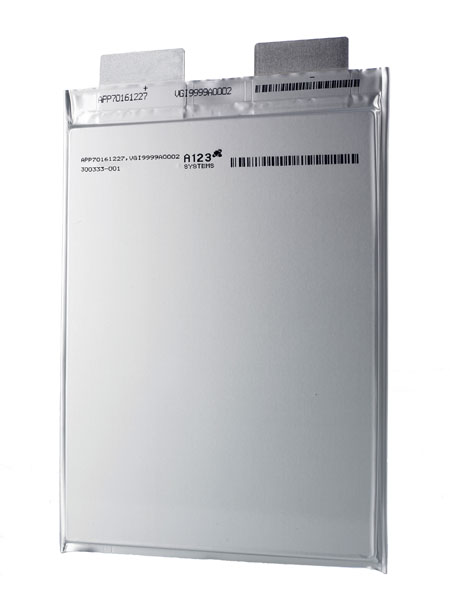

AMP20 Lithium Ion Prismatic Pouch Cell

Nanophosphate® AMP20M1HD-A: A123's AMP20 prismatic pouch cell is built to deliver high energy and power density combined. The AMP20 prismatic cell demonstrates industry-leading abuse tolerance coupled with excellent life performance under the most rigorous duty cycles. The AMP20 delivers high usable energy over a wide state of charge (SOC) range to minimize pack oversizing and offer very low cost per watt-hour.




Prismatic Cell Primary Applications:

  • Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
  • Passenger and commercial battery electric vehicles (BEVs)
  • Mild and micro hybrid vehicles
  • Long-Duration (LD) grid energy storage systems




Prismatic Cell Benefits:

  • Power: Over 2,400 W/kg and 4,500 W/L
  • Safety: Excellent abuse tolerance and environmentally friendly
  • Life: Excellent calendar and cycle life




Prismatic Cell Specifications:

  • Cell Dimensions (mm): 7.25 x 160 x 227
  • Cell Weight (g): 496
  • Cell Capacity (minimum, Ah): 19.5
  • Energy Content (nominal, Wh): 65
  • Discharge Power (nominal, W): 1200
  • Voltage (nominal, V): 3.3
  • Power (nominal, W/kg): 2400
  • Energy (nominal, Wh/kg): 131
  • Energy Density (nominal, Wh/L): 247
  • Operating Temperature: -30°C to 55°C
  • Storage Temperature: -40°C to 60°C
  • UNDOT 38.3 Certified (certificate available upon request)
